V575LA10CP | Littelfuse

Varistor, radial, VV 910 V, 3500 A, 575 V (AC), 100 J, V575LA10CP

Order No.: 74P7823
EAN: 4099891846886
MPN:
V575LA10CP
Series: C III
V575LA10CP Littelfuse Varistors

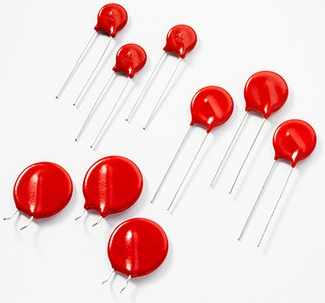

Image may differ
Unit Price (€ / pc.)
0.5474 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,149.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2100 pcs.
0.5474 €

Radial lead varistor, V575LA10CP, Littelfuse

This product is specifically designed for applications requiring high surge energy absorption ratings and superior multiple pulse absorption rating. This is achieved through a special dielectric material formulation which also results in higher repetitive surge ratings than other MOV types. It is intended for use in AC line Surge Protection Device (SPD) product and other similar applications requiring high transient energy and peak current capability in a relatively small package size.

Features

  • Lead–free, halogen-free and RoHS compliant
  • High pulse life rating
  • High peak pulse current capability
  • No derating up to 85ºC ambient
Technical specifications
Bauform radial
Energieabsorption 100 J
max. Stoßstrom (8/20 µs) 3500 A
max. Temperatur 85 °C
min. Temperatur -55 °C
Nennspannung (AC) 575 V
Rastermaß 8.5 mm
Varistor Spannung Typ 910 V
Logistics
Ursprungsland CN
Zolltarifnummer 85334090
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
