CK-1030 | Lorlin Electronics
Step rotary switches, 2 pole, 6 stage, 30°, On-On, interrupting, 150 mA, 250 V, CK-1030
Order No.: 16G351
EAN: 4099889221060
MPN:
CK-1030
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Next delivery: 100 pcs. on 2025-04-03
Leadtime: 8 Weeks **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.4272 €
50 pcs.
2.9750 €
100 pcs.
2.8441 €
500 pcs.
2.6537 €
*incl. VAT plus shipping costs
**Subject to prior sale

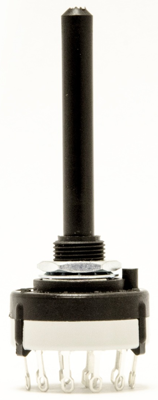

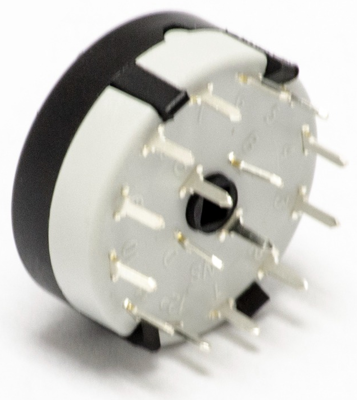

Multistep rotary switches, type Lorlin CK.
Closed version, with 1 contact bank; load capacity: 150 mA/250 V AC/DC, dielectric strength: 1500 VAC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance: max. 20 mohm. Operating temperatures: –30 to +85 °C. Housing: polyamide 6.6, glass fiber-reinforced. Contacts: brass, silver-plated. Bushing thread: M10 x 0.75. Shaft: D 6.0 mm, L 50 mm.
With solder connection and break before make action.
Technical attributes (type, number of poles x positions (number of poles x contacts), with and without index pin): CK1030, 2 x 6 contacts, with index pin
Technical specifications
| Anschluss | Lötanschluss | |
| Anzahl der Stufen | 6 | |
| Ausführung | Stufen-Drehschalter | |
| Nennspannung | 250 V | |
| Polzahl | 2-polig | |
| Schaltart | unterbrechend | |
| Schaltstellung | Ein-Ein | |
| Schaltstrom | 150 mA | |
| Schaltwinkel | 30 ° |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
