CK-1031 | Lorlin Electronics
Step rotary switches, 3 pole, 4 stage, 30°, On-On, interrupting, 150 mA, 250 V, CK-1031
Order No.: 16G352
EAN: 4099889221091
MPN:
CK-1031
Unit Price (€ / pc.)
3.8318 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.4272 €
50 pcs.
2.9750 €
100 pcs.
2.8441 €
500 pcs.
2.6537 €
*incl. VAT plus shipping costs
**Subject to prior sale

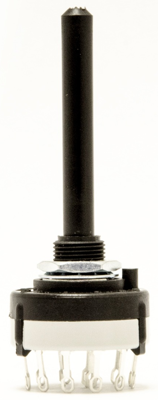

Multistep rotary switches, type Lorlin CK.

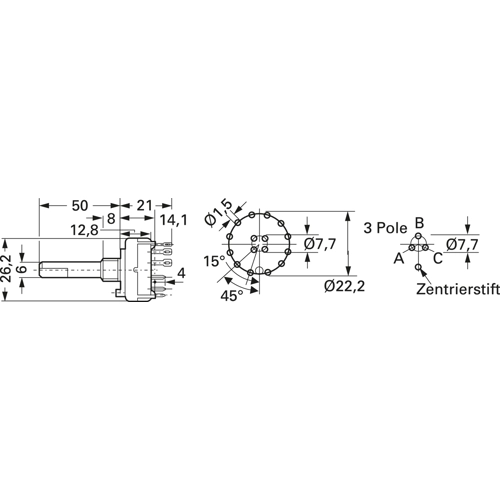

Closed version, with 1 contact bank; load capacity: 150 mA/250 V AC/DC, dielectric strength: 1500 VAC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance: max. 20 mohm. Operating temperatures: –30 to +85 °C. Housing: polyamide 6.6, glass fiber-reinforced. Contacts: brass, silver-plated. Bushing thread: M10 x 0.75. Shaft: D 6.0 mm, L 50 mm.

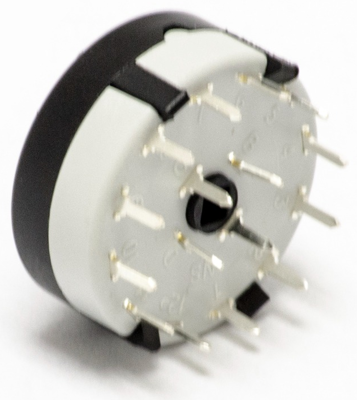

With solder connection and break before make action.
Technical attributes (type, number of poles x positions (number of poles x contacts), with and without index pin): CK1031, 3 x 4 contacts, with index pin
Technical specifications
| Connection | solder connection | |
| Number of steps | 4 | |
| Version | Rotary step switch | |
| Rated voltage | 250 V | |
| Pin number | 3 pole | |
| Switching Mode | interrupting | |
| Shift position | On-On | |
| switching current | 150 mA | |
| Switching angle | 30 ° |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
