103546 | Lumberg Automation

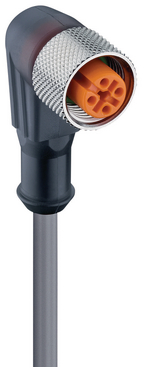

Sensor actuator cable, M12-cable socket, angled to open end, 4 pole, 12 m, PUR, gray, 4 A, 103546
Unit Price (€ / pc.)
33.3319 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Actuator/sensor single-ended cordset, RKWT/LED W 4-265/12 M, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, angled, 4-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 3xLEDs (PNP); PUR grey cable, 4-wires, 0.34 mm².
Technical specifications
| Connection (1) | M12-Kabeldose, abgewinkelt | |
| Connection (2) | offenes Ende | |
| Colour | grau | |
| Cable length | 12 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 4 A | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
