109389 | Lumberg Automation
Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 5 pole, 2 m, PUR, orange, 4 A, 109389
Unit Price (€ / pc.)
29.3811 € *
Available: 0 pcs.
Leadtime: 16 Weeks **

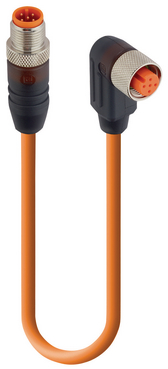

Actuator/sensor double-ended cordset, RST 5-RKWT/LED P 5-458/2 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male straight A-coded translucent 5-pin M12 Standard connector to female angled A-coded translucent 5-pin M12 Standard connector with 3xLEDs (PNP), 10-30 V DC, 4 A; PUR orange cable, 5-wires, 0.34 mm².
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | M12-Kabeldose, abgewinkelt | |
| Farbe | orange | |
| Kabellänge | 2 m | |
| LED-Anzeige | Yes | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
