11022 | Lumberg Automation
Sensor actuator cable, M8-cable plug, angled to M8-cable socket, angled, 3 pole, 0.6 m, PUR, black, 4 A, 11022
Unit Price (€ / pc.)
23.3121 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

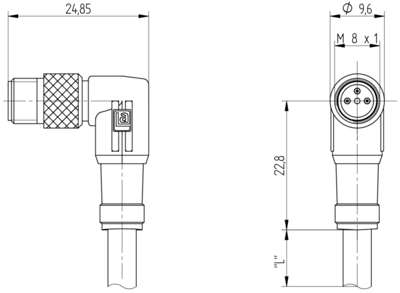

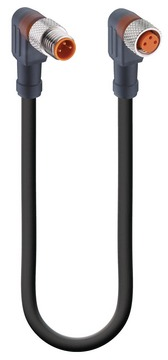

Actuator/sensor double-ended cordset, RSMWV 3-RKMWV/LED A 3-224/0,6 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male angled A-coded translucent 3-pin M8 Standard connector to female angled A-coded translucent 3-pin M8 Standard connector with 2xLEDs (PNP), 10-30 V DC, 4 A; PUR black cable, 3-wires, 0.34 mm².
Technical specifications
| Connection (1) | M8-Kabelstecker, abgewinkelt | |
| Connection (2) | M8-Kabeldose, abgewinkelt | |
| Colour | schwarz | |
| Cable length | 0.6 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 4 A | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
