11294 | Lumberg Automation

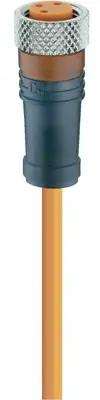

Sensor actuator cable, M8-cable socket, straight to open end, 3 pole, 2 m, PVC, orange, 4 A, 11294

Order No.: 72F1620
EAN: 4099891164782
MPN:
11294
RKMV 3-06/2 M
Series: RKMV
Lumberg Automation
11294 Lumberg Automation Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
10.2578 € *
Available: 20 pcs.
Leadtime: 12 Weeks **
Total Price:
102.58 € *
Price list
Quantity
Price per unit*
10 pcs.
10.2578 €
50 pcs.
9.5557 €
150 pcs.
9.1392 €
500 pcs.
8.6632 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RKMV

Excellent resistance against vibration and shock; Conductor color: orange. Rated voltage/current: 60 V/4.0 A. Test voltage (60 s): 1.5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +90 °C. Certifications: UL.

Cable jacks with PVC cable and screw lock, type RKMV.

Technical attributes (type, number of poles, length, conductor cross-section): RKMV 3-06/2 M, 3-pole, 2.0 m, 0.34 mm²

Technical specifications
Anschluss (1) M8-Kabeldose, gerade
Anschluss (2) offenes Ende
Farbe orange
Kabellänge 2 m
LED-Anzeige No
Material PVC
max. Spannung 63 V
Nennstrom 4 A
Polzahl 3-polig
Schutzart (IP) IP67
Logistics
Ursprungsland CZ
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
