11295 | Lumberg Automation

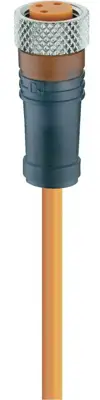

Sensor actuator cable, M8-cable socket, straight to open end, 3 pole, 5 m, PVC, orange, 4 A, 11295

Order No.: 72F1621
EAN: 4099891164799
MPN:
11295
RKMV 3-06/5 M
Series: RKMV
Lumberg Automation
11295 Lumberg Automation Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
14.2562 € *
Available: 8 pcs.
Leadtime: 22 Weeks **
Total Price:
14.26 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2562 €
10 pcs.
12.5426 €
50 pcs.
11.6977 €
150 pcs.
11.1741 €
500 pcs.
10.6029 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RKMV

Excellent resistance against vibration and shock; Conductor color: orange. Rated voltage/current: 60 V/4.0 A. Test voltage (60 s): 1.5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +90 °C. Certifications: UL.

Cable jacks with PVC cable and screw lock, type RKMV.

Technical attributes (type, number of poles, length, conductor cross-section): RKMV 3-06/5 M, 3-pole, 5.0 m, 0.34 mm²

Technical specifications
Anschluss (1) M8-Kabeldose, gerade
Anschluss (2) offenes Ende
Farbe orange
Kabellänge 5 m
LED-Anzeige No
Material PVC
max. Spannung 63 V
Nennstrom 4 A
Polzahl 3-polig
Schutzart (IP) IP67
Logistics
Ursprungsland CZ
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
