11301 | Lumberg Automation

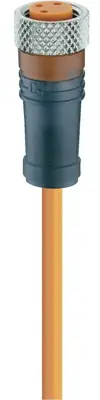

Sensor actuator cable, M8-cable socket, straight to open end, 4 pole, 5 m, PVC, orange, 4 A, 11301
Unit Price (€ / pc.)
15.9460 € *
Available: 37 pcs.
Leadtime: 25 Weeks **
Total Price:
15.95 € *
Price list
Quantity
Price per unit*
1 pcs.
15.9460 €
10 pcs.
14.0420 €
50 pcs.
13.0781 €
150 pcs.
12.4950 €
500 pcs.
11.8643 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RKMV
Excellent resistance against vibration and shock; Conductor color: orange. Rated voltage/current: 30 V/4.0 A. Test voltage (60 s): 0.8 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +90 °C. Certifications: UL.
Cable jacks with PVC cable and screw lock, type RKMV.
Technical attributes (type, number of poles, length, conductor cross-section): RKMV 4-07/5 M, 4-pole, 5.0 m, 0.25 mm²
Technical specifications
| Connection (1) | M8-cable socket, straight | |
| Connection (2) | open end | |
| Colour | orange | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 30 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
