11313 | Lumberg Automation

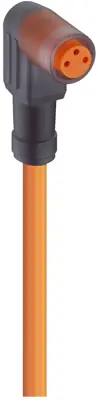

Sensor actuator cable, M8-cable socket, angled to open end, 4 pole, 5 m, PVC, orange, 4 A, 11313

Order No.: 72F1684
EAN: 4099891165277
MPN:
11313
RKMW 4-07/5M
Series: RKMW
11313 Lumberg Automation Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
12.7687 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
127.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
12.7687 €

Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RKMW.

Excellent resistance against vibration and shock; Conductor color: orange. Rated voltage/current: 30 V/4.0 A. Test voltage (60 s): 0.8 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +90 °C. Certifications: UL.

Angled cable jacks with PVC cable and snap lock, type RKMW.

Technical attributes (type, number of poles, length, conductor cross-section): RKMW 4-07/5 M, 4-pole, 5.0 m, 0.25 mm²

Technical specifications
Anschluss (1) M8-Kabeldose, abgewinkelt
Anschluss (2) offenes Ende
Farbe orange
Kabellänge 5 m
LED-Anzeige No
Material PVC
max. Spannung 30 V
Nennstrom 4 A
Polzahl 4-polig
Schutzart (IP) IP65
Logistics
Ursprungsland CZ
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
