11362 | Lumberg Automation

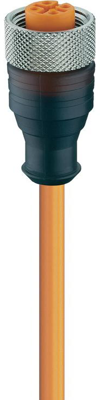

Sensor actuator cable, M12-cable socket, straight to open end, 4 pole, 10 m, PVC, orange, 4 A, 11362
Unit Price (€ / pc.)
18.7187 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
18.72 € *
Price list
Quantity
Price per unit*
10 pcs.
18.7187 €
50 pcs.
17.4454 €
150 pcs.
16.6719 €
500 pcs.
15.8151 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor/actuator connector, M12, molded cable, type Lumberg Automation RST../RKT../RKWT.
With self-securing screw lock, excellent resistance against vibration and shock; Conductor color: black. Rated voltage/current: 240 V/4.0 A. Test voltage (60 s): 2.0 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: CuSn, with 0.3 µm gold-plating on nickel primer. Ambient temperatures: - 25 to +80 °C. Certifications: UL.
Cable connector, females, with PVC cable, type RKT.
Technical attributes (type, number of poles, length, conductor cross-section): RKT 4-3-06/10 M, 3-pole, 10 m, 0.34 mm²
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Colour | orange | |
| Cable length | 10 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 250 V | |
| Rated current | 4 A | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
