11417 | Lumberg Automation
Sensor actuator cable, M12-cable socket, straight to open end, 5 pole, 2 m, PVC, orange, 4 A, 11417
Unit Price (€ / pc.)
24.7520 € *
Available: 45 pcs.
Leadtime: 21 Weeks **
Total Price:
24.75 € *
Price list
Quantity
Price per unit*
1 pcs.
24.7520 €
10 pcs.
21.7770 €
50 pcs.
20.2895 €
150 pcs.
19.3970 €
500 pcs.
18.4093 €
*incl. VAT plus shipping costs
**Subject to prior sale

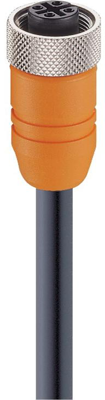

Sensor/actuator connector, M 12, with molded and shielded cable, type Lumberg Automation RSTS../RKTS.
With screw lock; Conductor cross-section: 0.34 mm². Cable color: orange. Rated voltage/current: 60 V/4.0 A. Test voltage (60 s): 1.5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU, orange. Contacts: CuZn, 0.8 µm gold-plating on nickel primer. Ambient temperatures: - 25 to +80 °C.
Cable connectors, female, type RKTS.
Technical attributes (type, number of poles, length, cable material): RKTS 5-183/2 M, 5-pole, 2.0 m, PVC
Technical specifications
| Anschluss (1) | M12-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | orange | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 63 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
