11462 | Lumberg Automation

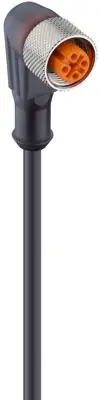

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 10 m, PVC, orange, 4 A, 11462
Unit Price (€ / pc.)
19.8730 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Sensor/actuator connector, M12, molded cable, type Lumberg Automation RST../RKT../RKWT.
With self-securing screw lock, excellent resistance against vibration and shock; Conductor color: orange. Rated voltage/current: 60 V/4.0 A. Test voltage (60 s): 1,5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: CuSn, with 0.3 µm gold-plating on nickel primer. Ambient temperatures: - 25 to +80 °C. Certifications: UL.
Female right-angle cable connectors with PVC cable, type RKWT.
Technical attributes (type, number of poles, length, conductor cross-section): RKWT 5-56/10 M, 5-pole, 10 m, 0.34 mm²
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | orange | |
| Kabellänge | 10 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 63 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
