12016 | Lumberg Automation

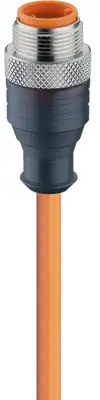

Sensor actuator cable, M12-cable plug, straight to open end, 5 pole, 2 m, PVC, orange, 4 A, 12016
Unit Price (€ / pc.)
18.1713 € *
Available: 11 pcs.
Leadtime: 16 Weeks **
Total Price:
18.17 € *
Price list
Quantity
Price per unit*
1 pcs.
18.1713 €
10 pcs.
15.9936 €
50 pcs.
14.8988 €
150 pcs.
14.2443 €
500 pcs.
13.5184 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor/actuator connector, M12, molded cable, type Lumberg Automation RST../RKT../RKWT.
With self-securing screw lock, excellent resistance against vibration and shock; Conductor color: orange. Rated voltage/current: 60 V/4.0 A. Test voltage (60 s): 1.5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: CuSn, with 0.3 µm gold-plating on nickel primer. Ambient temperatures: - 25 to +80 °C. Certifications: UL.
Cable connectors, male, with PVC cable, type RST.
Technical attributes (type, number of poles, length, conductor cross-section): RST 5-56/2 M, 5-pole, 2.0 m, 0.34 mm²
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | orange | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
