1220 | Lumberg Automation

Sensor actuator cable, M12-cable plug, straight to open end, 4 pole, 5 m, PVC, orange, 4 A, 1220

Order No.: 50F6505
EAN: 4099891150709
MPN:
1220
RSTS 4-RKTS 4-182/5 M
Series: RSTS

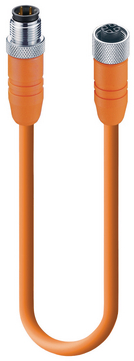

1220 Lumberg Automation Sensor-Actuator Cables Image 1
1220 Lumberg Automation Sensor-Actuator Cables Image 2
1220 Lumberg Automation Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
27.5604 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
551.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20 pcs.
27.5604 €

Double-ended cordset, RSTS 4-RKTS 4-182/5 M, Lumberg Automation

Actuator/sensor double-ended cordset: Male straight A-coded orange 4-pin M12 Standard connector to female straight A-coded orange 4-pin M12 Standard connector, shielded, 50 V AC / 60 V DC, 4 A; PVC orange cable, 4-wires, 0.34 mm².

Technical specifications
Anschluss (1) M12-Kabelstecker, gerade
Anschluss (2) offenes Ende
Farbe orange
Kabellänge 5 m
LED-Anzeige No
Material PVC
max. Spannung 60 V
Nennstrom 4 A
Polzahl 4-polig
Schutzart (IP) IP67
Logistics
Ursprungsland CZ
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei
