12438 | Lumberg Automation

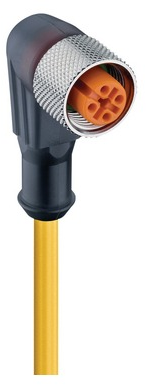

Sensor actuator cable, M12-cable socket, angled to open end, 4 pole, 25 m, PUR, yellow, 4 A, 12438
Unit Price (€ / pc.)
45.0891 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Actuator/sensor single-ended cordset, RKWT/LED P 4-377/25 M, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, angled, 4-pin, A-coded, translucent body, 10-30 V DC, 4 A, with 3xLEDs (PNP); PUR yellow cable, 4-wires, 0.34 mm².
Technical specifications
| Anschluss (1) | M12-Kabeldose, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Farbe | gelb | |
| Kabellänge | 25 m | |
| LED-Anzeige | Yes | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 4 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
