13460 | Lumberg Automation

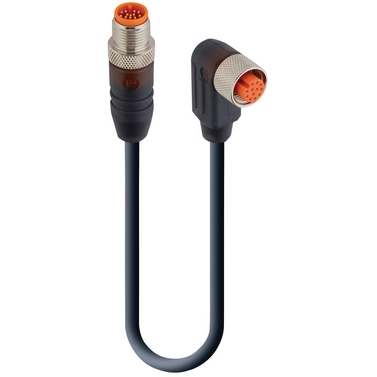

Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 12 pole, 10 m, PUR, black, 1.5 A, 13460
Unit Price (€ / pc.)
80.2655 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

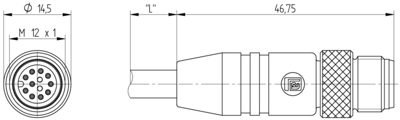

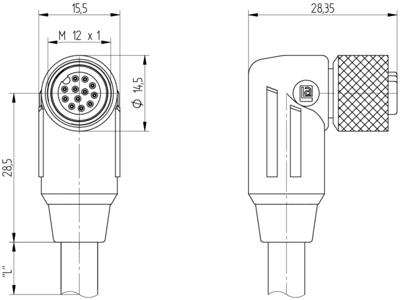

Actuator/sensor double-ended cordset, RST 12-RKWT 12-10-345/10 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male straight A-coded translucent 12-pin M12 Standard connector to female angled A-coded translucent 12-pin M12 Standard connector, 30 V AC/DC, 1.5 A; PUR black cable, 10-wires, 0.25 mm².
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | M12-Kabeldose, abgewinkelt | |
| Farbe | schwarz | |
| Kabellänge | 10 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 1.5 A | |
| Polzahl | 12-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
