1357 | Lumberg Automation
Sensor actuator cable, M8-cable socket, straight to M8-cable socket, angled, 3 pole, 0.82 m, PUR, black, 4 A, 1357
Unit Price (€ / pc.)
15.0416 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

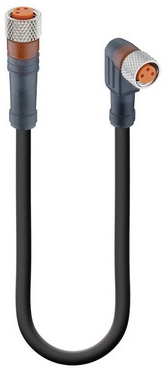

Actuator/sensor double-ended cordset, RKMV 3-RKMWV 3-224/0,82 M, Lumberg Automation
Actuator/sensor double-ended cordset: Female straight A-coded translucent 3-pin M8 Standard connector to female angled A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 3-wires, 0.34 mm².
Technical specifications
| Anschluss (1) | M8-Kabeldose, gerade | |
| Anschluss (2) | M8-Kabeldose, abgewinkelt | |
| Farbe | schwarz | |
| Kabellänge | 0.82 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
