13636 | Lumberg Automation

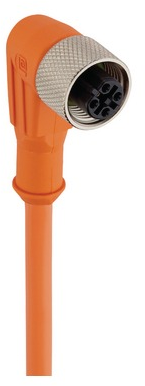

Sensor actuator cable, M12-cable socket, angled to open end, 5 pole, 5 m, PVC, orange, 4 A, 13636
Unit Price (€ / pc.)
21.1225 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Actuator/sensor single-ended cordset, RKWT 5B-70/5 M, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, angled, 5-pin, B-coded, orange body, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 4x0.34 mm²+1x0.50 mm².
Technical specifications
| Connection (1) | M12-cable socket, angled | |
| Connection (2) | open end | |
| Colour | orange | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP65/IP67/IP68 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
