14006 | Lumberg Automation

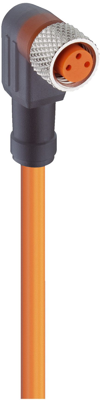

Sensor actuator cable, M8-cable socket, angled to open end, 3 pole, 10 m, PUR, black, 4 A, 14006

Order No.: 72F1657
EAN: 4099891165109
MPN:
14006
RKMWV/LED A 3-224/10M
Series: RKMWV
Lumberg Automation
14006 Lumberg Automation Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
22.3006 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
22.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
22.3006 €

Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RSMV../RKMV../RKMWV.

Excellent resistance against vibration and shock; Conductor color: orange (PVC), black (PUR). Rated voltage/current 60 V/4.0 A (3-pole), 30 V/4.0 A (4-pole). Test voltage (60 s): 1.5 kVRMS (3-pole), 0.8 kVRMS (4-pole). Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: –40 to +90 °C. Certifications: UL.

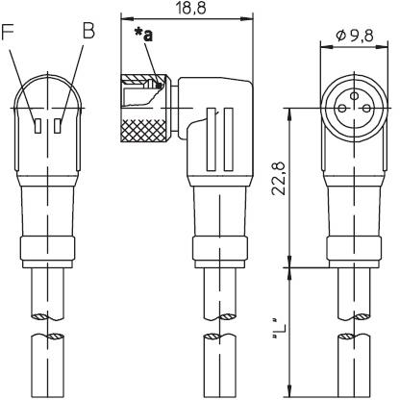

Angled cable jacks with PUR cable, LED and screw lock, type RKMWV/LED.

Technical attributes (type, number of poles, length, conductor cross-section): RKMWV/LED A 3-224/10 M, 3-pole, 10 m, 0.34 mm²

Technical specifications
Connection (1) M8-cable socket, angled
Connection (2) open end
Colour black
Cable length 10 m
LED display Yes
Material PUR
max. Voltage 30 V
Rated current 4 A
Pin number 3 pole
Degree of protection (IP) IP67
Logistics
Country of origin CZ
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
