15644 | Lumberg Automation
Sensor actuator cable, M12-cable socket, straight to open end, 12 pole, 0.5 m, PUR, black, 1.5 A, 15644
Unit Price (€ / pc.)
28.0959 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

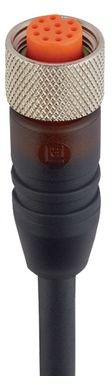

Actuator/sensor single-ended cordset, RKT 12-10-345/0,5 M, Lumberg Automation
M12 Standard Actuator/sensor single-ended cordset: Female, straight, 12-pin, A-coded, translucent body, 30 V AC/DC, 1.5 A; PUR black cable, 10-wires, 0.25 mm².
Technical specifications
| Anschluss (1) | M12-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 0.5 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 1.5 A | |
| Polzahl | 12-polig | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
