15753 | Lumberg Automation
Sensor actuator cable, M12-cable plug, straight to M12-cable socket, angled, 5 pole, 4 m, PUR, orange, 4 A, 15753
Unit Price (€ / pc.)
31.7254 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

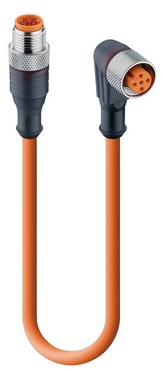

Actuator/sensor double-ended cordset, RST 5-RKWT/LED P 5-259/4 M, Lumberg Automation

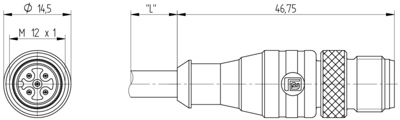

Actuator/sensor double-ended cordset: Male straight A-coded translucent 5-pin M12 Standard connector to female angled A-coded translucent 5-pin M12 Standard connector with 3xLEDs (PNP), 10-30 V DC, 4 A; PUR orange cable, 5-wires, 0.50 mm².
Technical specifications
| Connection (1) | M12-Kabelstecker, gerade | |
| Connection (2) | M12-Kabeldose, abgewinkelt | |
| Colour | orange | |
| Cable length | 4 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 4 A | |
| Pin number | 5-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
