18346 | Lumberg Automation
Sensor actuator cable, M8-cable socket, angled to M8-cable socket, straight, 3 pole, 0.5 m, PVC, black, 4 A, 18346
Unit Price (€ / pc.)
17.2312 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

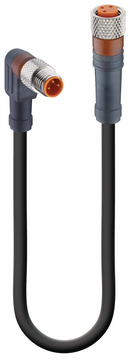

Actuator/sensor double-ended cordset, RSMWV 3-RKMV 3-294/0,5 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male angled A-coded translucent 3-pin M8 Standard connector to female straight A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PVC black cable, 3-wires, 0.34 mm².
Technical specifications
| Connection (1) | M8-Kabeldose, abgewinkelt | |
| Connection (2) | M8-Kabeldose, gerade | |
| Colour | schwarz | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
