20036 | Lumberg Automation
Sensor actuator cable, M8-cable plug, straight to M12-cable socket, straight, 4 pole, 1 m, PUR, black, 4 A, 20036
Unit Price (€ / pc.)
20.9678 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

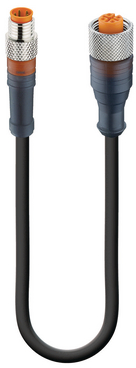

Actuator/sensor double-ended cordset, RSMV 4-RKT 4-225/1 M, Lumberg Automation

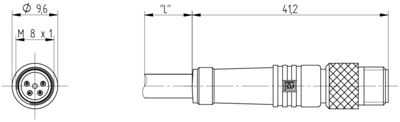

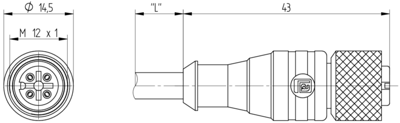

Actuator/sensor double-ended cordset: Male straight A-coded translucent 4-pin M8 Standard connector to female straight A-coded translucent 4-pin M12 Standard connector, 30 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm².
Technical specifications
| Connection (1) | M8-Kabelstecker, gerade | |
| Connection (2) | M12-Kabeldose, gerade | |
| Pin number | 4-polig | |
| Cable length | 1 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP65/IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
