38689 | Lumberg Automation
Sensor actuator cable, M12-cable plug, straight to M8-cable socket, straight, 3 pole, 15 m, PUR, black, 4 A, 38689
Unit Price (€ / pc.)
18.0404 € *
Available: 0 pcs.
Leadtime: 22 Weeks **

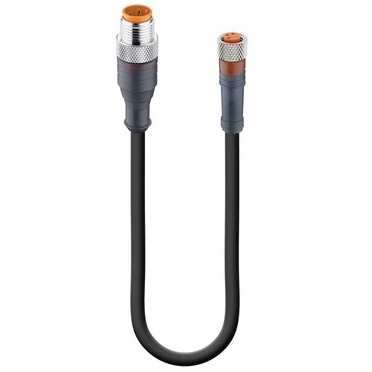

Actuator/sensor double-ended cordset, RST 3-RKMV 3-224/1,5 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male straight A-coded translucent 3-pin M12 Standard connector to female straight A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PUR black cable, 3-wires, 0.34 mm².
Technical specifications
| Anschluss (1) | M12-Kabelstecker, gerade | |
| Anschluss (2) | M8-Kabeldose, gerade | |
| Farbe | schwarz | |
| Kabellänge | 15 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 60 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
