43571 | Lumberg Automation

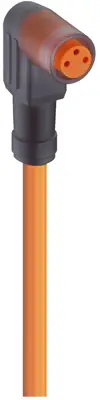

Sensor actuator cable, M8-cable socket, angled to open end, 3 pole, 2 m, PUR, black, 4 A, 43571

Order No.: 72F1686
EAN: 4099891165291
MPN:
43571
RKMW 3-224/2M
Series: RKMW
43571 Lumberg Automation Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
11.1027 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
111.03 € *
Price list
Quantity
Price per unit*
10 pcs.
11.1027 €
50 pcs.
10.3530 €
150 pcs.
9.8889 €
500 pcs.
9.3891 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RKMW

Excellent resistance against vibration and shock; Conductor color: black. Rated voltage/current: 60 V/4.0 A. Test voltage (60 s): 1.5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +90 °C. Certifications: UL.

Angled cable jacks with PUR cable and snap lock, type RKMW.

Technical attributes (type, number of poles, length, conductor cross-section): RKMW 3-224/2 M, 3-pole, 2.0 m, 0.34 mm²

Technical specifications
Anschluss (1) M8-Kabeldose, abgewinkelt
Anschluss (2) offenes Ende
Farbe schwarz
Kabellänge 2 m
LED-Anzeige No
Material PUR
max. Spannung 60 V
Nennstrom 4 A
Polzahl 3-polig
Schutzart (IP) IP65
Logistics
Ursprungsland CZ
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
