49261 | Lumberg Automation

Sensor actuator cable, M12-cable socket, straight to open end, 8 pole, 2 m, PUR, black, 2 A, 49261

Order No.: 50F1996
EAN: 4099891117320
MPN:
49261
RKTS 8-299/2 M
Series: RKTS
Lumberg Automation
49261 Lumberg Automation Sensor-Actuator Cables
Image may differ
Unit Price (€ / pc.)
28.9289 € *
Available: 0 pcs.
Leadtime: 51 Weeks **
Total Price:
28.93 € *
Price list
Quantity
Price per unit*
10 pcs.
28.9289 €
50 pcs.
27.6556 €
150 pcs.
26.5013 €
*incl. VAT plus shipping costs
**Subject to prior sale

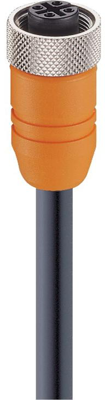

Sensor/actuator connector, M 12, with molded and shielded cable, type Lumberg Automation RSTS../RKTS.

With screw lock; Conductor cross-section: 0.25 mm². Cable color: black. Rated voltage/current: 30 V/2.0 A. Test voltage (60 s): 1.5 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU, orange. Contacts: CuZn, 0.8 µm gold-plating on nickel primer. Ambient temperatures: - 25 to +80 °C.

Cable connectors, female, type RKTS.

Technical attributes (type, number of poles, length, cable material): RKTS 8-299/2 M, 8-pole, 2.0 m, PUR

Technical specifications
Connection (1) M12-cable socket, straight
Connection (2) open end
Colour black
Cable length 2 m
LED display No
Material PUR
max. Voltage 36 V
Rated current 2 A
Pin number 8 pole
Degree of protection (IP) IP67
Logistics
Country of origin CZ
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
