91033 | Lumberg Automation

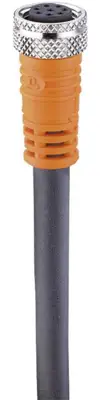

Sensor actuator cable, M8-cable socket, straight to open end, 8 pole, 2 m, PUR, black, 4 A, 91033
Unit Price (€ / pc.)
33.6175 € *
Available: 5 pcs.
Leadtime: 3 Weeks **
Total Price:
33.62 € *
Price list
Quantity
Price per unit*
1 pcs.
33.6175 €
5 pcs.
31.5945 €
15 pcs.
30.3807 €
50 pcs.
29.0479 €
150 pcs.
27.8341 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor/actuator connector, M 8, molded cable, type Lumberg Automation RKMV
Excellent resistance against vibration and shock; Conductor color: black. Rated voltage/current: 30 V/1.0 A. Test voltage (60 s): 0,8 kVRMS. Contact resistance: max. 5.0 mohm. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67. Housing material: TPU. Contacts: copper zinc, 0.8 µm gold-plated on nickel substrate. Ambient temperatures: - 40 to +90 °C. Certifications: UL.
Cable jacks, with PUR cable and screw lock, type RKMV.
Technical attributes (type, number of poles, length, conductor cross-section): RKMV 8-354/2 M, 8-pole, 2.0 m, 0.14 mm²
Technical specifications
| Connection (1) | M8-cable socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 2 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 36 V | |
| Rated current | 4 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
