934898058 | Lumberg Automation

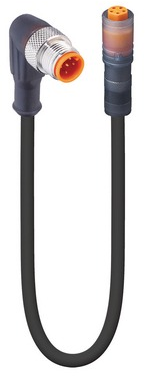

Sensor actuator cable, M12-cable plug, angled to M8-cable socket, straight, 5 pole, 0.6 m, PUR, black, 3 A, 934898058
Unit Price (€ / pc.)
25.4779 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Actuator/sensor double-ended cordset, RSWT 5-RKM 5-506/0,6 M, Lumberg Automation
Actuator/sensor double-ended cordset: Male angled A-coded translucent 5-pin M12 Standard connector to female straight B-coded translucent 5-pin M8 Snap-In connector, 50 V AC / 60 V DC, 3 A; PUR black cable, 5-wires, 0.25 mm².
Technical specifications
| Anschluss (1) | M12-Kabelstecker, abgewinkelt | |
| Anschluss (2) | M8-Kabeldose, gerade | |
| Farbe | schwarz | |
| Kabellänge | 0.6 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 60 V | |
| Nennstrom | 3 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
