934966101 | Lumberg Automation

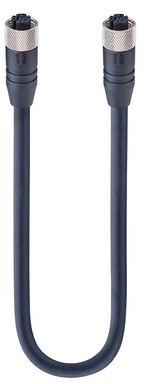

Sensor actuator cable, M12-cable socket, straight to M12-cable socket, straight, 8 pole, 0.3 m, PUR, black, 6 A, 934966101
Unit Price (€ / pc.)
71.1501 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Double-ended cordset, RKTS 8Y-RKTS 8Y-922/0,3 M, Lumberg Automation
Fast Ethernet Cat5e Data double-ended cordset: Female straight Y-coded black M12 Hybrid to female straight Y-coded black M12 Hybrid, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm² + Power: 4x0.75 mm².

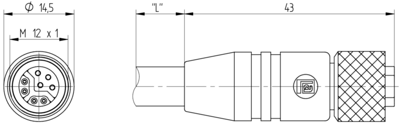

Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | M12-cable socket, straight | |
| Colour | black | |
| Cable length | 0.3 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 50 V | |
| Rated current | 6 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
