934966303 | Lumberg Automation

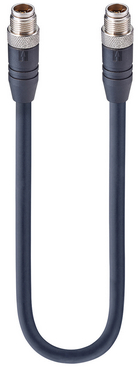

Sensor actuator cable, M12-cable plug, straight to M12-cable plug, straight, 8 pole, 1 m, PUR, black, 0.5 A, 934966303
Unit Price (€ / pc.)
109.5633 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Double-ended cordset, RSTS 8Y-RSTS 8Y-922/1 M, Lumberg Automation
Fast Ethernet Cat5e Data double-ended cordset: Male straight Y-coded black M12 Hybrid to male straight Y-coded black M12 Hybrid, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm² + Power: 4x0.75 mm².
Technical specifications
| Connection (1) | M12-cable plug, straight | |
| Connection (2) | M12-cable plug, straight | |
| Colour | black | |
| Cable length | 1 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 50 V | |
| Rated current | 0.5 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
