11619 | Lumberg Automation
Plug, M12, 3 pole, solder connection, screw locking, straight, 11619
Unit Price (€ / pc.)
4.4030 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Sensor-actuator connector, 11619, Lumberg Automation

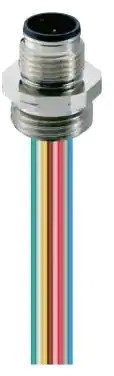

M12 Standard Sensor/actuator receptacle connector: male, front mount, M12 - mating side, solder contacts - connecting side, 3-pin, unshielded, metallic grey housing, 230 V AC/DC, 4 A.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | front mounting | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
