24753 | Lumberg Automation
Socket, M12, 4 pole, crimp connection, screw locking, straight, 24753
Unit Price (€ / pc.)
7.0329 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

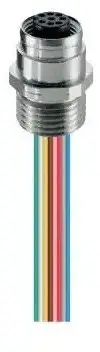

Sensor-actuator connector, 24753, Lumberg Automation
M12 Standard Sensor/actuator receptacle connector: female, front mount, M12 - mating side, stranded wires - connecting side, 4-pin, unshielded, metallic grey housing, 230 V AC/DC, 4 A.
Features
- Contact material: CuSn
- Housing material: CuZn, nickel-plated
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Version | Buchse | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | Crimpanschluss | |
| contact surface | vergoldet | |
| Assembly | Frontmontage | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP65/IP67 | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
