69994 | Lumberg Automation

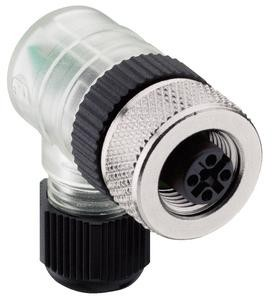

Socket, M12, 4 pole, screw connection, screw locking, angled, 69994
Unit Price (€ / pc.)
10.8528 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Sensor-actuator connector, 69994, Lumberg Automation
Field attachable connector, M12 female connector, 4-pole with threaded joint and LED operation and function indicator, assembling with screw terminals.
Features
- Contact material: CuZn, pre-coppered, CuSnZn
- Housing material: PBT
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Version | socket | |
| Thread size | M12 | |
| Contact connection | screw connection | |
| contact surface | CuSnZn | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
