933159001 | Lumberg Automation

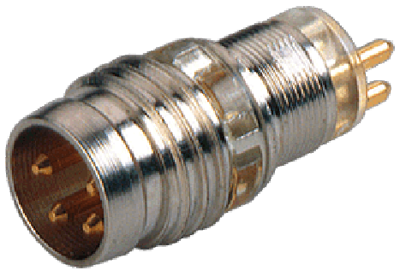

Plug, M8, 4 pole, PCB connection, snap-in/screw locking, straight, 933159001
Unit Price (€ / pc.)
3.0583 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Sensor-actuator connector, 933159001, Lumberg Automation
M8 Insert Sensor/actuator receptacle connector: male, insert with light indicator windows, M8 - mating side, print contacts - connecting side, 4-pin, unshielded, metallic grey housing, 30 V AC/DC, 4 A.
Features
- Contact material: CuZn
- A-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Version | Stecker | |
| Thread size | M8 | |
| Coding | A | |
| Contact connection | Leiterplattenanschluss | |
| contact surface | vergoldet | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Degree of protection (IP) | IP67/IP68 | |
| Type of locking | Snap-in/Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
