934925004 | Lumberg Automation
Plug, M12, 8 pole, coupling screw, straight, 934925004
Unit Price (€ / pc.)
181.2132 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

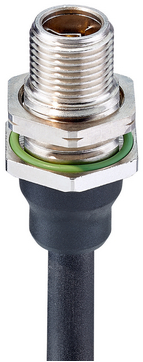

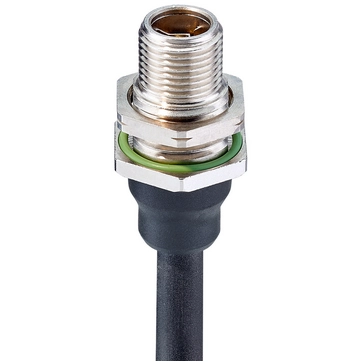

Sensor-actuator connector, 934925004, Lumberg Automation
Fast Ethernet Cat5e data single-ended cordset: M12 hybrid receptacle, male, straight, 8-pin, Y-coded, shielded, black body, 50 V AC/ DC, 0.5 A, PUR black cable, 8-wires, Data: 4x 0.15 mm² + Power: 4x 0.75 mm².
Features
- Contact material: CuSn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Version | Stecker | |
| Thread size | M12 | |
| Coding | Y | |
| contact surface | vergoldet | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Degree of protection (IP) | IP67/IP69K | |
| Type of locking | Kupplungsschraube |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
