934926005 | Lumberg Automation
Socket, M12, 8 pole, Coupling nut, straight, 934926005
Unit Price (€ / pc.)
209.0473 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

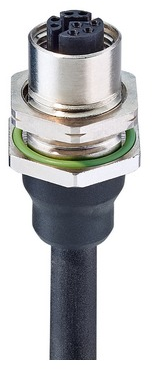

Sensor-actuator connector, 934926005, Lumberg Automation
Fast Ethernet Cat5e data single-ended cordset: M12 hybrid receptacle, female, straight, 8-pin, Y-coded, shielded, black body, 50 V AC/ DC, 0.5 A, PUR black cable, 8-wires, Data: 4x 0.15 mm² + Power: 4x 0.75 mm².
Features
- Contact material: CuSn
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Version | socket | |
| Thread size | M12 | |
| Coding | Y | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67/IP69K | |
| Type of locking | Coupling nut |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
