11134 | Lumberg Automation

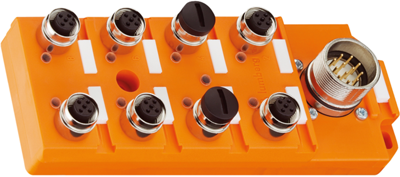

Sensor-actuator distributor, 4 x M12 (5 pole), 11134
Unit Price (€ / pc.)
119.476 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Sensor/actuator distribution box, type Lumberg ASBS.
With FIXCON M12 sockets, status and function display, M23 cable connector; Rated voltage: 10 to 30 VDC. Rated current (per socket/total): 10 A. Contact resistance: max. 5.0 mohm. Degree of protection: IP 67 (in locked or screwed state). Ambient temperatures: - 15 to +80 °C.
Technical attributes (type, version, number of poles): ASBSV 4/LEDS5-4, 4 sockets, 4 + PE
Technical specifications
| Bus Output | M12 (5 pole, A coded) | |
| Bus Input | M12 (5 pole, A coded) | |
| IO Ports | 4 x M12 (5 pole) | |
| Power Input | M23 | |
| Degree of protection (IP) | IP67 | |
| Signal type | PNP |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
