11138 | Lumberg Automation

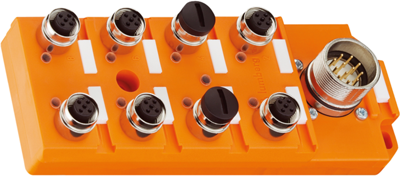

Sensor-actuator distributor, 8 x M12 (5 pole), 11138
Unit Price (€ / pc.)
158.1391 € *
Available: 1 pcs.
Leadtime: 13 Weeks **
Sensor/actuator distribution box, type Lumberg ASBS.
With FIXCON M12 sockets, status and function display, M23 cable connector; Rated voltage: 10 to 30 VDC. Rated current (per socket/total): 10 A. Contact resistance: max. 5.0 mohm. Degree of protection: IP 67 (in locked or screwed state). Ambient temperatures: - 15 to +80 °C.
Technical attributes (type, version, number of poles): ASBSV 8/LEDS5-4, 8 sockets, 4 + PE
Technical specifications
| Bus Ausgang | M12 (5-polig, A-kodiert) | |
| Bus Eingang | M12 (5-polig, A-kodiert) | |
| IO Ports | 8 x M12 (5-polig) | |
| Leistungsanschluss | M23 | |
| Schutzart (IP) | IP67 | |
| Signalart | PNP |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
