65305 | Lumberg Automation
Sensor-actuator distributor, 4 x M8 (3 pole), 65305
Unit Price (€ / pc.)
95.4856 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

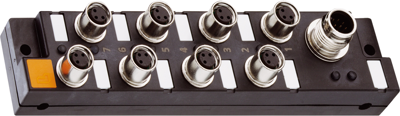

Miniature Sensor/actuator distribution box, type Lumberg ASBSM.
With M8 sockets, 3-pole, status display and M12 cable connection; Rated voltage: 10 to 30 VDC. Rated current (per socket/total): 1,5/1,5 A. Contact resistance: max. 5,0 mohm. Degree of protection: IP 67 (in locked or screwed state). Ambient temperatures: –25 to +70 °C.
Technical attributes (type, version): ASBSM 4/LED 3, 4 sockets
Technical specifications
| Bus Ausgang | M8 (3-polig, A-kodiert) | |
| Bus Eingang | M8 (3-polig, A-kodiert) | |
| IO Ports | 4 x M8 (3-polig) | |
| Leistungsanschluss | M12 | |
| Schutzart (IP) | IP67 | |
| Signalart | PNP |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Octamethylcyclotetrasiloxan, Decamethylcyclopentasiloxan, Dodecamethylcyclohexasiloxan, Blei |
