1610 01 | Lumberg

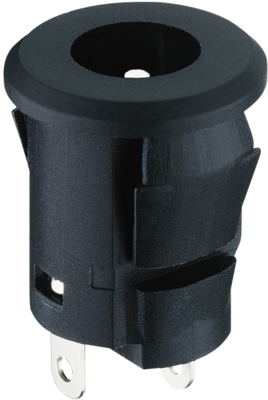

DC panel-mount socket, 5.8 mm, 2,35 mm, 1610 01
As an alternative, we recommend the following item:
DC built-in socket, 2.5 mm, 5.8 mm, 1610 07
Order No.: 41P1792
Manufacturer: Lumberg
per pc. 1.1662 € *
*incl. VAT plus shipping costs
Power supply chassis sockets for snap-in front side mounting, type Lumberg 1610.
2-pole, straight, with solder eyelets; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 0.5 A (type 1610 02), or 1.0 A (type 1610 01). Test voltage: 500 V/60 s. Contact resistance: max. 30 mohm. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): 1610 01, CP 2.35, MD 5.8 mm
Technical specifications
| Connection | solder connection | |
| Version | panel socket | |
| Outer diameter | 12 mm | |
| Colour | black | |
| Hole diameter | 5.8 mm | |
| Assembly | built-in mounting | |
| Rated voltage | 12 V | |
| Rated current | 1 A | |
| Shaft length | 14.4 mm | |
| Latching switching function | No | |
| Pin diameter | 2.35 mm | |
| With bend protection | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
