1613 23 | Lumberg

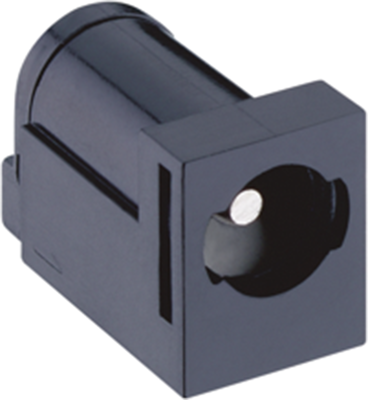

DC panel-mount switched socket, 5.7 mm, 2,35 mm
Unit Price (€ / pc.)
1.3804 € *
Available: 572 pcs.
Leadtime: 11 Weeks **
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
100 pcs.
1.2019 €
250 pcs.
1.0472 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply chassis sockets, bayonet lock, for PCB mounting, type Lumberg 1613.
2-pole, angled, bayonet lock, with bayonet lock and NC contact; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 1.0 A. Test voltage: 500 V/60 s. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): 1613 23, CP 2.35, MD 5.7 mm
Technical specifications
| Connection | PCB connection | |
| Version | panel socket | |
| Outer diameter | 5.7 mm | |
| Colour | black | |
| Hole diameter | 5.7 mm | |
| Assembly | built-in mounting | |
| Rated voltage | 12 V | |
| Rated current | 1 A | |
| Latching switching function | Yes | |
| Pin diameter | 2.35 mm | |
| With bend protection | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
