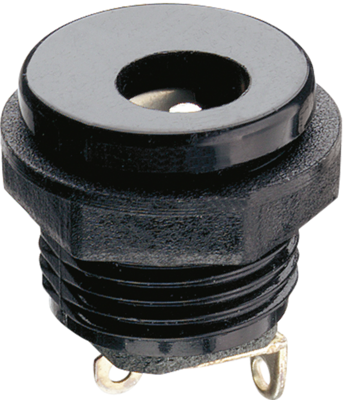

NEB/J 25 C | Lumberg
DC panel-mount switched socket, 6.3 mm, 2,35 mm
Unit Price (€ / pc.)
1.2019 € *
Available: 754 pcs.
Leadtime: 16 Weeks **
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
100 pcs.
1.0353 €
375 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply chassis sockets, front panel mount, type Lumberg NEB/J..C.
2-pole, straight, NC contact, solder eyelets; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 1.0 A. Test voltage: 500 V/60 s. Operating temperatures: - 25 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): NEB/J 25 C, CP 2.35 mm, MD 6.3 mm
Technical specifications
| Connection | solder connection | |
| Version | panel switch socket | |
| Colour | black | |
| Hole diameter | 6.3 mm | |
| Assembly | built-in mounting | |
| Rated voltage | 12 V | |
| Rated current | 1 A | |
| Latching switching function | Yes | |
| Pin diameter | 2.35 mm | |
| With bend protection | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
