NEK/J 250 | Lumberg
DC coupling, 2.5 mm, 5.5 mm, NEK/J 250
Unit Price (€ / pc.)
1.8445 € *
Available: 430 pcs.
Leadtime: 11 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
25 pcs.
1.5708 €
100 pcs.
1.4399 €
250 pcs.
1.3685 €
1000 pcs.
1.2614 €
*incl. VAT plus shipping costs
**Subject to prior sale

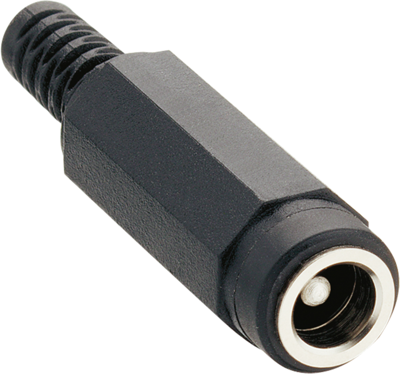

Power supply cable sockets with bend protection, type Lumberg NEK/J 250.
2-pole, with solder eyelets; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 1.0 A. Test voltage: 500 V/60 s. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, center pin diameter CP, mating diameter MD): NEK/J 250, CP 2.35 mm, MD 5.7 mm
Technical specifications
| Connection | solder connection | |
| Version | jack | |
| Outer diameter | 5.7 mm | |
| Colour | black | |
| Cable diameter | 4 mm | |
| Hole diameter | 5.5 mm | |
| Assembly | cable assembly | |
| Rated voltage | 24 V | |
| Rated current | 2 A | |
| Latching switching function | No | |
| Pin diameter | 2.35 mm | |
| With bend protection | Yes |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
