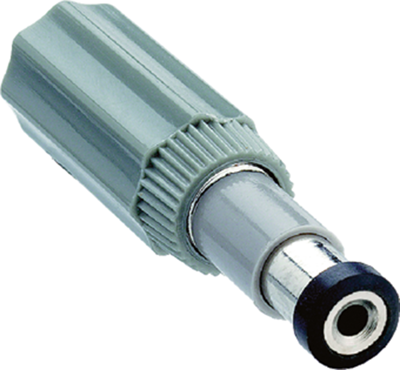

NES 1 | Lumberg
DC plug, 1.98 mm, 6 mm
Unit Price (€ / pc.)
1.3209 € *
Available: 40 pcs.
Leadtime: 11 Weeks **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
100 pcs.
1.1543 €
250 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply plugs to DIN 45323, type Lumberg NES 1.
2-pole, straight, with solder eyelets; Housing: plastic. Color: gray. Rated voltage: 34 VDC. Current rating: 3.0 A. Test voltage: 500 V/60 s. Operating temperatures: –20 °C to +70 °C.
Technical attributes (type, inner diameter, outer diameter): NES 1, 1.98 mm, 6.0 mm
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Outer diameter | 6 mm | |
| Colour | gray | |
| Inner diameter | 1.98 mm | |
| Cable diameter | 6 mm | |
| Assembly | cable assembly | |
| Rated voltage | 34 V | |
| Rated current | 3 A | |
| Shaft length | 15 mm | |
| Latching switching function | No | |
| With bend protection | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
