NES/J 135 | Lumberg

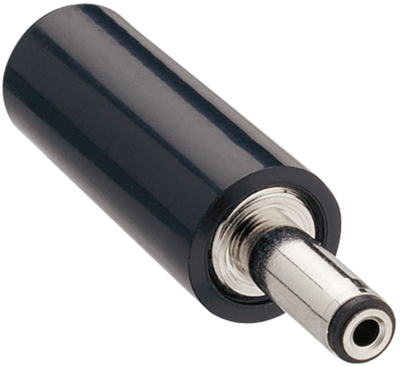

DC plug, inner dia. 1.4 mm, outer dia. 3.4 mm, black
Unit Price (€ / pc.)
1.1186 € *
Available: 389 pcs.
Leadtime: On Request **
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0234 €
50 pcs.
0.9401 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supply plugs, type Lumberg NES/J.
2-pole, straight, with solder eyelets; Housing: plastic. Color: black. Rated voltage: 12 VDC. Current rating: 0.5 A. Test voltage: 500 V/60 s. Operating temperatures: - 20 °C to +70 °C.
Technical attributes (type, inner diameter, outer diameter, color, figure): NES/J 135, 1.4 mm, 3.4 mm, black
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Outer diameter | 3.4 mm | |
| Colour | black | |
| Inner diameter | 1.4 mm | |
| Cable diameter | 4 mm | |
| Assembly | cable assembly | |
| Rated voltage | 12 V | |
| Rated current | 500 mA | |
| Shaft length | 9 mm | |
| Latching switching function | No | |
| With bend protection | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
