0131 05 | Lumberg

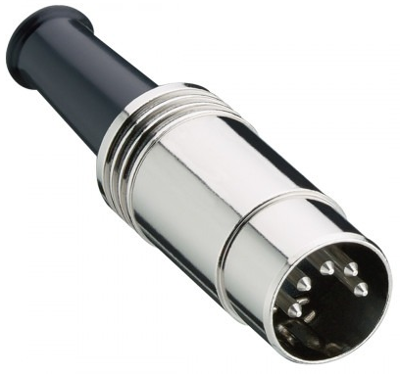

Plug, 5 pole, solder cup, bayonet locking, straight, 0131 05
Unit Price (€ / pc.)
5.4859 € *
Available: 49 pcs.
Leadtime: 19 Weeks **
Total Price:
5.49 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4859 €
10 pcs.
4.8433 €
100 pcs.
4.2364 €
200 pcs.
4.0698 €
*incl. VAT plus shipping costs
**Subject to prior sale
DIN plug, 0131 05, LUMBERG
DIN plug, straight version, shielded, with metal housing, bend protection and solder terminals.
Technical specifications
| Version | DIN plug | |
| Additional parts | equipped | |
| Shell Material | metal | |
| Cable diameter | 7 mm | |
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
