0304 05 | Lumberg

Panel socket, 5 pole, solder cup, screw locking, straight, 0304 05

Order No.: 70F4184
EAN: 4099889736458
MPN:
0304 05
Series: 0304

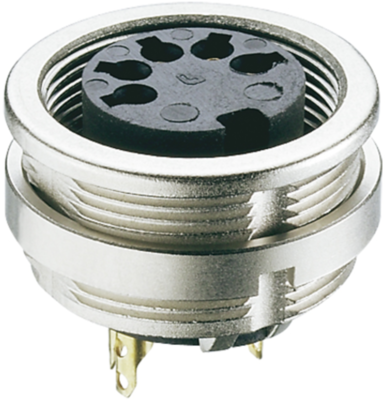

0304 05 Lumberg Other Circular Connectors Image 1
0304 05 Lumberg Other Circular Connectors Image 2
0304 05 Lumberg Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
5.0456 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
5.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.0456 €

Chassis socket, 0304 05, LUMBERG

Chassis socket IP68, with threaded joint M16 and ground contact for printed circuit boards and rear mounting.

Technical specifications
Version DIN-Einbaubuchse
Additional parts bestückt
Shell Material Metall
Contact connection Lötkelch
contact surface vergoldet/versilbert
Cable cross-section 0,75 mm²
Assembly Frontmontage
Orientation gerade
Pin number 5-polig
Type of locking Schraubverriegelung
Logistics
Country of origin CZ
Customs tariff number 85366990
Original Packaging Karton mit 50 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
