0314 05 | Lumberg
Panel plug, 5 pole, solder cup, screw locking, straight, 0314 05
Unit Price (€ / pc.)
6.8782 € *
Available: 58 pcs.
Leadtime: 9 Weeks **
Total Price:
6.88 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8782 €
10 pcs.
6.0571 €
100 pcs.
5.2955 €
200 pcs.
5.0813 €
*incl. VAT plus shipping costs
**Subject to prior sale

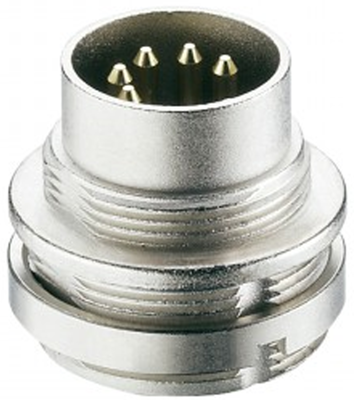

Chassis plug, 0314 05, LUMBERG
Chassis plug IP68, with threaded joint M16 and solder terminals for front mounting.
Technical specifications
| Version | DIN panel plug | |
| Additional parts | equipped | |
| Shell Material | metal | |
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | front mounting | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
