0316 05 | Lumberg

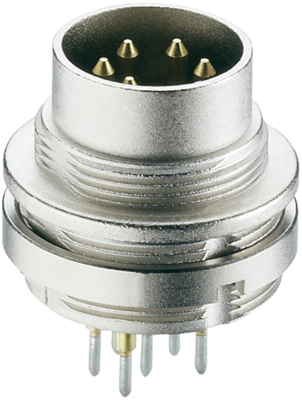

Name: Panel plug, 5 pole, pin connection, screw locking, straight, 0316 05
Brand: Lumberg
SKU: 41P1105
Price: 6.12 EUR
Availability: OutOfStock

Panel plug, 5 pole, pin connection, screw locking, straight, 0316 05

Order No.: 41P1105

EAN: 4099889723021

MPN:

0316 05

Series: 0316

Image may differ

Key Specification:

Ausführung Einbaustecker

Polzahl 5-polig

Orientierung gerade

Kontaktanschluss Stiftanschluss

Show 11 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

6.1166 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

6.12 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Chassis plug, 0316 05, LUMBERG

Chassis plug IP68 with threaded joint M16, for printed circuit board and front mounting.

Technical specifications

	Ausführung	Einbaustecker
	Gehäusematerial	Metall
	Kontaktanschluss	Stiftanschluss
	Kontaktoberfläche	vergoldet/versilbert
	Montage	Frontmontage
	Orientierung	gerade
	Polzahl	5-polig
	Verriegelung	Schraubverriegelung

Show similar products 0

Download

Technisches Datenblatt - DE/EN Technisches Datenblatt

Produktänderung - DE/EN Produktänderung

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	PL
Zolltarifnummer	85366990
Originalverpackung	Karton mit 50 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory
